O-Ring Squeeze: What It Is, How to Calculate It, and Why It Matters

O-ring squeeze is one of the most important factors in reliable sealing performance.

An O-ring may have the correct material, size, and hardness, but if it is compressed incorrectly during installation, the sealing system can still leak, wear prematurely, or fail under pressure.

So, what exactly is O-ring squeeze?

O-ring squeeze is the amount by which the O-ring cross-section is compressed when it is installed in its sealing groove. This compression creates the initial contact pressure between the O-ring and the mating surfaces.

In this guide, we explain what O-ring squeeze means, how to calculate it, typical squeeze ranges for different applications, and what can happen when the squeeze is too low or too high.

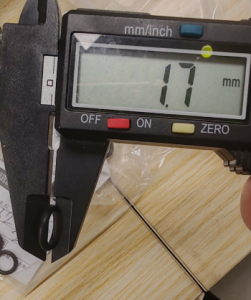

What Is O-Ring Squeeze?

An O-ring has a circular cross-section when it is not installed.

When the O-ring is placed inside a properly designed gland and the mating components are assembled, the O-ring is compressed.

This compression is called squeeze.

The basic principle is simple:

More squeeze does not always mean better sealing.

The O-ring needs enough compression to maintain sealing contact, but excessive compression can increase friction, accelerate compression set, and make installation more difficult.

For this reason, squeeze should be considered together with the O-ring material, hardness, temperature, pressure, gland dimensions, and whether the seal is static or dynamic.

For a broader explanation of how O-rings create a seal, see our guide to How Do O-Rings Work?.

How Is O-Ring Squeeze Calculated?

For a radial O-ring seal, squeeze can be calculated using the following basic formula:

Squeeze (%) = (O-ring cross-section − gland depth) / O-ring cross-section × 100

For example, assume an O-ring has a cross-section of 3.00 mm and the effective gland depth is 2.40 mm.

The squeeze is:

(3.00 − 2.40) / 3.00 × 100 = 20%

Therefore, the O-ring has approximately 20% squeeze.

This calculation is straightforward, but real-world O-ring design is more complicated because the O-ring itself has dimensional tolerances and the groove also has manufacturing tolerances.

The minimum and maximum possible squeeze should therefore be checked rather than relying only on nominal dimensions.

For more information about gland dimensions, see our guide to O-Ring Groove Design.

Why Is O-Ring Squeeze Important?

The primary purpose of squeeze is to create enough contact pressure to maintain the seal.

Even before system pressure is applied, the compressed rubber attempts to return toward its original shape. This elastic recovery creates contact against the sealing surfaces.

When fluid or gas pressure is applied, the pressure can further energize the O-ring against the lower-pressure side of the sealing gap.

This is why a properly designed O-ring can maintain a reliable seal over a wide range of applications.

However, the relationship is not simply:

More squeeze = better sealing.

If the squeeze is too low, the O-ring may not maintain sufficient contact pressure.

If the squeeze is too high, the O-ring may experience excessive deformation, friction, heat generation, and permanent deformation.

What Happens When O-Ring Squeeze Is Too Low?

Insufficient squeeze is a common cause of leakage.

When the O-ring is not compressed enough, it may not maintain sufficient contact pressure against the mating surfaces.

Possible symptoms include:

• Fluid leakage
• Gas leakage
• Intermittent sealing
• Leakage during pressure changes
• Increased sensitivity to surface imperfections
• Seal movement in some dynamic applications

Low squeeze can become particularly problematic when the sealing system experiences vibration, pressure fluctuations, thermal cycling, or dimensional changes.

In some cases, the O-ring may appear to have the correct nominal size but still provide insufficient squeeze because of incorrect groove depth or dimensional tolerances.

This is why simply selecting an O-ring based on its nominal diameter is not enough.

What Happens When O-Ring Squeeze Is Too High?

Excessive squeeze can also cause problems.

When an O-ring is compressed too much, it can experience high mechanical stress.

Potential problems include:

• Increased friction
• Higher assembly force
• Difficult installation
• Accelerated wear in dynamic applications
• Increased compression set
• Reduced service life
• Damage during assembly

For dynamic seals, excessive squeeze can be particularly undesirable because the sealing surfaces move relative to each other.

Higher compression can increase friction between the O-ring and the mating surface. This can generate additional heat and accelerate wear.

Therefore, dynamic O-ring applications generally use less squeeze than static applications.

Static vs. Dynamic O-Ring Squeeze

The appropriate squeeze depends heavily on the type of application.

Static O-Ring Seals

In a static application, the mating components do not move relative to each other after assembly.

Typical examples include:

• Flanges
• Valve bodies
• Covers
• Pipe connections
• Hydraulic fittings
• Stationary housings

Static seals can generally tolerate a higher level of squeeze because there is little or no sliding movement.

A commonly used engineering range for many static applications is approximately 15–30%, but the correct value depends on the specific O-ring size, material, gland geometry, pressure, and operating conditions.

Dynamic O-Ring Seals

Dynamic applications involve relative movement between the O-ring and the mating component.

Examples include:

• Hydraulic pistons
• Reciprocating cylinders
• Moving shafts
• Pneumatic equipment
• Rotary applications

Dynamic seals generally require lower squeeze because excessive compression increases friction and heat.

For many reciprocating applications, a typical design range may be around 8–16%, while rotary applications may require even lower squeeze depending on speed, lubrication, pressure, and seal geometry.

These values should be treated as engineering starting points rather than universal rules.

For a broader discussion of where O-rings are used, see our O-Ring Applications Guide.

O-Ring Squeeze Is Not the Only Design Parameter

One of the most common mistakes in O-ring design is focusing on squeeze while ignoring the rest of the gland.

A reliable sealing system also needs to consider:

1. Gland Fill

The groove must provide enough space for the O-ring to deform.

Rubber is nearly incompressible, so when the O-ring is squeezed, its cross-section must expand into the available space inside the gland.

If the groove is too full, there may not be enough room for thermal expansion or swelling caused by the sealing medium.

Our O-Ring Groove Design guide explains the relationship between groove depth, groove width, squeeze, gland fill, and clearance.

2. O-Ring Stretch

For radial seals, the O-ring may need to be stretched over a shaft or installed into a bore.

Excessive stretch can reduce the effective cross-section of the O-ring and influence the final squeeze.

The stretch should therefore be considered during groove and O-ring size selection.

For basic information about selecting the correct O-ring dimensions, see our O-Ring Size Guide.

3. Extrusion Gap

Under pressure, the O-ring can be forced into the clearance between two mating components.

If the extrusion gap is too large for the pressure and material hardness, the O-ring may gradually extrude into the gap and eventually fail.

Higher pressure applications may require tighter clearances, harder compounds, or backup rings.

4. Surface Finish

The mating surfaces also affect sealing performance.

A surface that is too rough may damage the O-ring or create leakage paths.

A surface that is excessively smooth is not automatically better either, particularly for some lubricated dynamic applications.

The surface finish should therefore be selected according to the specific sealing application.

How Material Selection Affects O-Ring Squeeze

O-ring squeeze cannot be separated completely from material selection.

Different elastomers behave differently under compression and temperature.

For example:

NBR

NBR is widely used for oil, fuel, hydraulic and pneumatic applications. It is also a cost-effective choice for many general industrial sealing applications.

EPDM

EPDM is commonly selected when excellent resistance to hot water, steam, weathering, and certain chemicals is required.

FKM

FKM is frequently used when higher temperature resistance and resistance to many oils and chemicals are important.

Silicone

Silicone O-rings can provide good temperature performance and flexibility for selected applications, although their resistance to certain mechanical and chemical conditions must be considered carefully.

Choosing the correct elastomer is therefore just as important as choosing the correct squeeze.

Our O-Ring Material Selection Guide provides a broader overview of the factors that should be considered when selecting an O-ring compound.

For specific material comparisons, see our guides to NBR vs. EPDM O-Rings and FKM vs. NBR O-Rings.

A Simple O-Ring Squeeze Example

Consider a static radial seal with:

• O-ring cross-section: 3.00 mm
• Gland depth: 2.40 mm

The calculated squeeze is:

(3.00 − 2.40) / 3.00 × 100 = 20%

A 20% nominal squeeze may be suitable as a starting point for many static applications.

However, an engineer should not stop at this calculation.

The next questions should include:

• What is the actual O-ring cross-section tolerance?
• What is the groove depth tolerance?
• What temperature will the seal experience?
• What fluid or gas will contact the O-ring?
• What is the operating pressure?
• Is the application static or dynamic?
• What is the maximum extrusion gap?
• Is there any chemical swelling?
• What surface finish is available?
• How will the O-ring be installed?

These questions help turn a simple calculation into a reliable sealing design.

Common O-Ring Squeeze Design Mistakes

Mistake 1: Using the same squeeze for every application

Static and dynamic seals have different requirements.

Mistake 2: Ignoring manufacturing tolerances

A nominal 20% squeeze does not mean the actual production parts will always have exactly 20%.

Mistake 3: Increasing squeeze to solve every leakage problem

If a seal leaks, increasing squeeze may not be the correct solution. The problem could be caused by incorrect material, surface damage, groove geometry, extrusion, compression set, or installation damage.

Mistake 4: Selecting the material only by price

A cheaper O-ring can become much more expensive if it fails prematurely.

Mistake 5: Designing the groove after selecting the O-ring

The O-ring and gland should be considered as a sealing system.

The groove dimensions, O-ring cross-section, pressure, temperature, and material should be evaluated together.

O-Ring Squeeze and Long-Term Seal Life

Correct squeeze is also important for service life.

An O-ring operates under continuous mechanical deformation. Over time, temperature, chemicals, pressure, and compression can change the properties of the elastomer.

One important failure mechanism is compression set.

Compression set occurs when an elastomer does not fully recover its original shape after being compressed for a period of time.

If compression set becomes significant, the O-ring may lose sealing force and eventually leak.

This is one reason excessive squeeze should not be treated as a simple way to increase sealing reliability.

For more information, see our guide on How to Improve Rubber Seal Service Life and our article about Common O-Ring Failures.

O-Ring Squeeze Should Be Designed as Part of the Complete Sealing System

O-ring squeeze is an important design parameter, but it is only one part of the complete sealing system.

A reliable O-ring design should consider:

Material + hardness + size + squeeze + gland fill + stretch + extrusion gap + surface finish + pressure + temperature + media compatibility

When these factors are considered together, the O-ring has a much better chance of providing consistent sealing performance.

If you are developing a custom rubber seal or O-ring, the groove drawing, operating conditions, sealing medium, temperature range, pressure, and expected movement should be reviewed before finalizing the O-ring specification.

Conclusion

O-ring squeeze determines how much the O-ring is compressed inside its gland and plays a fundamental role in creating and maintaining sealing contact.

Too little squeeze can result in leakage and unstable sealing.

Too much squeeze can increase friction, installation force, compression set, and wear.

For this reason, there is no single squeeze value that is correct for every O-ring application.

The best approach is to select the O-ring material and size together with the gland dimensions and operating conditions.
