O-Ring Extrusion: Causes, Prevention and How to Choose the Right Seal

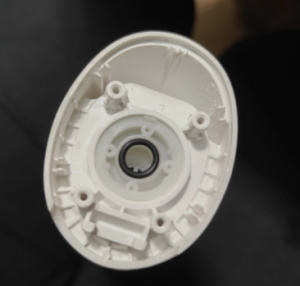

O-ring extrusion is a common cause of premature seal failure, especially in high-pressure hydraulic, pneumatic, and industrial applications.
An O-ring can appear to have the correct size and material but still fail if the clearance gap is too large, the system pressure is too high, or the rubber compound is too soft for the application.
When extrusion occurs, part of the O-ring is forced into the clearance gap between two mating components. Continued pressure and movement can damage the rubber and eventually cause leakage.
Understanding why O-ring extrusion occurs can help engineers and purchasing teams select the correct O-ring material, hardness, groove design, and sealing system.
What Is O-Ring Extrusion?
O-ring extrusion occurs when pressure forces part of the elastomer into the clearance gap between mating components.
Under normal conditions, the O-ring remains inside the sealing groove and maintains contact with the surrounding surfaces.
When the pressure and clearance conditions become unfavorable, the rubber can be pushed toward the low-pressure side and into the available gap.
The extruded material may initially appear as a small deformation.
As the equipment continues operating, however, the rubber can become damaged, torn, or removed from the O-ring.
This can eventually lead to leakage and seal failure.
What Does an Extruded O-Ring Look Like?
A damaged O-ring caused by extrusion may show several characteristic signs.
Common signs include:
- Small pieces of rubber missing from the O-ring
- A thin lip or flap on one side of the O-ring
- Nibbled or torn edges
- Flattened sections
- Localized surface damage
- Repeated leakage after replacement
The damage is often concentrated on the low-pressure side of the seal where the O-ring is being pushed toward the clearance gap.
If you are investigating a failed seal, extrusion should be considered together with other possible causes.
Our guide to Common O-Ring Failures explains how extrusion, compression set, installation damage, chemical attack, and other failure mechanisms can be distinguished.
What Causes O-Ring Extrusion?
Several factors can contribute to extrusion.
The most important include:
- Excessive system pressure
- Excessive clearance gap
- O-ring material that is too soft
- High operating temperature
- Incorrect groove design
- Pressure cycling
- Incorrect O-ring dimensions
- Poor control of component tolerances
In many cases, extrusion is not caused by a single factor.
The actual risk depends on the relationship between pressure, temperature, clearance, material hardness, and groove design.
1. Excessive Pressure
Pressure is one of the most important factors affecting extrusion.
As system pressure increases, the force acting on the O-ring also increases.
At relatively low pressure, the O-ring may remain securely inside the gland.
At higher pressure, the elastomer can be pushed toward the clearance gap.
If the clearance is large enough, the rubber may begin to enter the gap.
This is why high-pressure applications require more careful control of:
- O-ring hardness
- Clearance
- Groove dimensions
- Material selection
- Backup ring design
A seal designed for a low-pressure water system should not automatically be used in a high-pressure hydraulic application.
2. Excessive Clearance Gap
Clearance is the space between two mating components outside the sealing groove.
A larger clearance gap gives the O-ring more room to move into.
Therefore, even if the O-ring material and pressure are suitable, excessive mechanical clearance can increase extrusion risk.
This is particularly important when component dimensions have relatively large manufacturing tolerances.
Engineers should consider the maximum possible clearance, rather than only the nominal drawing dimension.
This means that shaft diameter, bore diameter, groove dimensions, and manufacturing tolerances all matter.
For more information about the relationship between O-rings and their installation groove, see our O-Ring Groove Design Guide.
3. O-Ring Hardness
O-ring hardness also affects extrusion resistance.
A softer rubber compound generally deforms more easily under pressure.
A harder compound can provide better resistance to extrusion in many applications.
However, choosing the hardest possible rubber is not always the correct solution.
Hardness can also affect:
- Installation
- Flexibility
- Low-temperature sealing
- Friction
- Surface conformity
- Dynamic performance
Therefore, hardness should be selected according to the complete application rather than extrusion resistance alone.
For example, an application requiring the O-ring to accommodate surface imperfections may benefit from a different hardness than a high-pressure static seal.
4. Temperature
Temperature can change the behavior of elastomer materials.
At elevated temperatures, some rubber compounds may soften or lose mechanical strength.
This can make the O-ring more susceptible to deformation and extrusion.
Temperature can also affect:
- Compression set
- Elastic recovery
- Chemical resistance
- Dimensional stability
- Service life
For this reason, pressure and temperature should always be considered together.
An O-ring that performs well at room temperature may behave differently at elevated operating temperatures.
Material selection is therefore an important part of extrusion prevention.
Our O-Ring Material Selection Guide explains the main characteristics of NBR, EPDM, FKM, and silicone O-rings.
5. Incorrect Groove Design
The groove controls the position and deformation of the O-ring.
If the groove dimensions are not suitable for the O-ring and application, the seal may become more vulnerable to extrusion.
Important groove-related factors include:
- Groove depth
- Groove width
- Groove diameter
- Clearance
- O-ring compression
- Groove fill
- Corner geometry
The groove should provide sufficient space for the O-ring while maintaining the required sealing compression.
It should also limit unwanted movement under pressure.
This is why O-ring dimensions should not be considered independently from the gland design.
6. Pressure Cycling
Extrusion does not always occur immediately.
Repeated pressure changes can gradually damage an O-ring.
During each pressure cycle, the elastomer may move slightly toward the clearance gap.
Repeated movement can eventually produce:
- Nibbling
- Small cuts
- Surface cracks
- Material loss
- Leakage
Applications with rapidly changing or pulsating pressure therefore require special attention.
Examples include:
- Hydraulic equipment
- Pumps
- Pressure regulators
- Valves
- Actuators
- High-pressure fluid systems
A seal that survives a static pressure test may still fail after thousands of pressure cycles.
O-Ring Extrusion vs Compression Set
Extrusion and compression set are sometimes confused because both can eventually cause leakage.
However, they are different failure mechanisms.
Extrusion
The rubber is physically forced into the clearance gap.
Typical signs include:
- Nibbled edges
- Torn material
- Thin rubber lips
- Localized damage
Compression Set
The rubber loses its ability to return to its original shape after long-term compression.
Typical signs include:
- Flattened cross-section
- Permanent deformation
- Reduced elastic recovery
- Leakage after long-term service
Understanding the difference can help engineers identify the actual cause of failure instead of simply replacing the O-ring with a different material.
How Can O-Ring Extrusion Be Prevented?
Several approaches can be used to reduce extrusion risk.
1. Reduce Clearance
Reducing the clearance gap is one of the most direct ways to reduce the available space into which the O-ring can be forced.
However, the clearance must still accommodate:
- Manufacturing tolerances
- Thermal expansion
- Component movement
- Assembly requirements
Therefore, simply making the clearance as small as possible is not always practical.
2. Select an Appropriate O-Ring Hardness
A harder compound may provide better resistance to extrusion under certain pressure conditions.
However, hardness should be selected together with:
- Temperature
- Fluid compatibility
- Dynamic movement
- Installation requirements
- Surface finish
The material must still provide adequate sealing performance under the actual operating conditions.
3. Use a Backup Ring
For demanding high-pressure applications, a backup ring may be used to support the O-ring.
The backup ring helps reduce the space available for the elastomer to move into.
Backup rings are particularly useful in applications where:
- Pressure is high
- Pressure direction changes
- Clearance cannot be sufficiently reduced
- Pressure cycling is significant
The exact backup-ring design depends on the application and sealing configuration.
4. Optimize the Groove
The groove should be designed according to the O-ring cross-section and application.
Important considerations include:
- Correct squeeze
- Suitable groove width
- Appropriate groove depth
- Controlled clearance
- Adequate groove fill
- Suitable corner geometry
Our O-Ring Squeeze Guide explains why the amount of compression needs to be controlled rather than simply maximized.
How Does O-Ring Material Affect Extrusion?
Material selection affects how an O-ring responds to pressure and temperature.
For example, NBR is widely used in hydraulic and pneumatic applications because of its good mechanical properties and oil resistance.
EPDM is often selected for water, steam, weather, and ozone resistance.
FKM is frequently used where higher temperature and chemical resistance are required.
However, the exact performance depends on the compound formulation, hardness, temperature, pressure, and other operating conditions.
This means that selecting an O-ring simply by material name is not always enough.
For applications where NBR and FKM are both candidates, our FKM vs NBR O-Rings Comparison Guide provides a more detailed comparison.
How to Diagnose an Extruded O-Ring
If an O-ring has failed in service, do not immediately assume that the material was wrong.
A better approach is to inspect the entire sealing system.
Check:
O-Ring
- Material
- Hardness
- Cross-section
- Inside diameter
- Surface condition
- Signs of chemical attack
Groove
- Groove depth
- Groove width
- Groove diameter
- Clearance
- Surface finish
- Corner geometry
Operating Conditions
- Maximum pressure
- Minimum pressure
- Pressure cycling
- Operating temperature
- Fluid or gas
- Dynamic movement
Assembly
- Installation method
- Lubrication
- Stretch
- Twisting
- Damage during installation
This systematic approach can help identify whether the root cause is extrusion or another sealing problem.
Why O-Ring Size Still Matters
Correct dimensions are essential even when extrusion is the main concern.
An O-ring that is too small, too large, or has the wrong cross-section can change the amount of compression and available space inside the gland.
Before changing material or hardness, confirm that the correct O-ring size is being used.
Our O-Ring Size Guide explains how inside diameter, cross-section, and outside diameter are related.
Correct sizing is the starting point for reliable sealing.
O-Ring Extrusion in Industrial Applications
Extrusion can occur in many industries, including:
- Hydraulic equipment
- Pneumatic systems
- Pumps
- Valves
- Automotive systems
- Refrigeration equipment
- Industrial machinery
- Household appliances
- Fluid-control equipment
The required O-ring specification can be very different between applications.
For example, a low-pressure water application may have very different extrusion requirements from a high-pressure hydraulic cylinder.
Our O-Ring Applications Guide provides an overview of how O-rings are used across different industries.
When Should You Consider a Custom O-Ring?
A standard O-ring may not always be suitable for a demanding application.
You may need a custom sealing solution when:
- The groove is non-standard
- Installation space is limited
- Pressure is unusually high
- Temperature is outside common operating ranges
- A special rubber compound is required
- The sealing geometry is unusual
- Standard O-rings have repeatedly failed
A custom O-ring manufacturer can help evaluate the relationship between:
- O-ring dimensions
- Material
- Hardness
- Groove design
- Clearance
- Pressure
- Temperature
- Chemical compatibility
This approach can be more effective than simply changing the O-ring material after every failure.
O-Ring Extrusion Prevention Checklist
Before approving an O-ring for a high-pressure application, check:
- Is the O-ring the correct size?
- Is the material compatible with the fluid?
- Is the hardness appropriate?
- Is the maximum pressure known?
- Is the operating temperature known?
- Is the clearance controlled?
- Is the groove correctly designed?
- Is the squeeze appropriate?
- Is a backup ring required?
- Are pressure cycles considered?
- Are manufacturing tolerances controlled?
- Is the installation process suitable?
If these factors are considered together, the risk of extrusion-related failure can be significantly reduced.
Conclusion
O-ring extrusion occurs when pressure forces the elastomer into the clearance gap between mating components.
The risk increases when pressure is high, clearance is excessive, the rubber is too soft, temperature is elevated, or the groove is not properly designed.
Preventing extrusion is therefore not simply a matter of selecting a harder O-ring.
A reliable sealing system requires the correct combination of:
- O-ring size
- Material
- Hardness
- Groove design
- Squeeze
- Clearance
- Pressure
- Temperature
- Installation conditions
When these factors are considered together, O-ring reliability can be significantly improved.
At DRFPART, we provide custom O-rings and rubber sealing components for OEM and industrial applications. If you are experiencing repeated O-ring extrusion, leakage, or premature seal failure, we can help evaluate the sealing requirements and develop a suitable rubber sealing solution.
Pingback: O-Ring Back-Up Rings Guide: When to Use & Prevent Extrusion
Pingback: O-Ring Back-Up Ring Guide: When to Use & Prevent Extrusion
